SS9014 NPN Transistor: Equivalent, Datasheet and Application
TRANS NPN 45V 0.1A TO-92 The SS9014 is a low signal and low noise NPN transistor. This article will unlock more details about SS9014. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
54
Oct 5, 2021
Larry Ward
SS9014CBU
101362In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.15969 | $0.16 |
| 500+ | $0.11742 | $58.71 |
| 1000+ | $0.09785 | $97.85 |
| 2000+ | $0.08977 | $179.54 |
| 5000+ | $0.0839 | $419.5 |
| 10000+ | $0.07804 | $780.4 |
| 15000+ | $0.07548 | $1132.2 |
| 50000+ | $0.07421 | $3710.5 |
Unit Price:$0.15969
Subtotal: $0.16
Quick Links

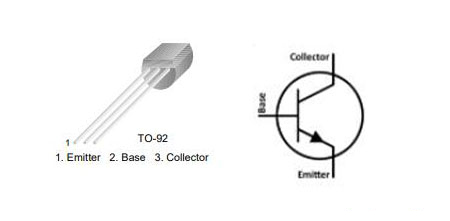

SS9014 Pinout
SS9014 Pinout
| Pin No. | Pin Name | Description |
| 1 | Emitter | Current Drains out through emitter, normally connected to ground |
| 2 | Base | Controls the biasing of the transistor, Used to turn ON or OFF the transistor |
| 3 | Collector | Current flows in through collector, normally connected to load |
SS9014 CAD Model

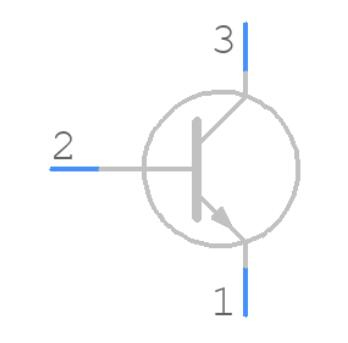

SS9014 Symbol

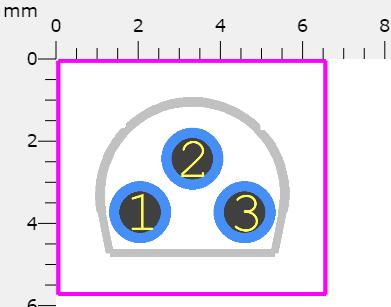

SS9014 Footprint

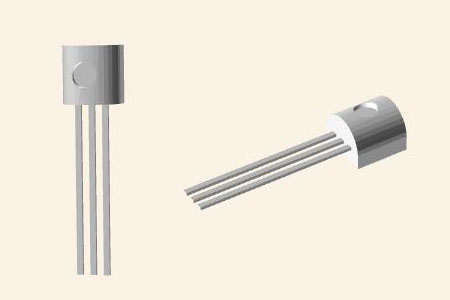

SS9014 3D Model
SS9014 Description
The SS9014 is a low signal, low noise NPN transistor with a high linearity hfe value of up to 1000, making it an excellent choice for building Audio Frequency (AF) amplifiers or pre-amplifiers.
Specifications
SS9014CBU Tech Specifications
SS9014CBU Tech Specifications
ON Semiconductor SS9014CBU technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS9014CBU.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 4 days ago) | |
| Factory Lead Time | 7 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Weight | 179mg | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 45V | |
| Collector-Emitter Saturation Voltage | 140mV | |
| Number of Elements | 1 Element | |
| hFEMin | 60 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Bulk | |
| Published | 2007 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Voltage - Rated DC | 45V | |
| Max Power Dissipation | 450mW | |
| Terminal Position | BOTTOM | |
| Current Rating | 100mA | |
| Frequency | 270MHz | |
| Base Part Number | SS9014 | |
| Element Configuration | Single | |
| Power Dissipation | 450mW | |
| Transistor Application | AMPLIFIER | |
| Gain Bandwidth Product | 270MHz | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN |
| Product Attribute | Attribute Value | |
|---|---|---|
| Collector Emitter Voltage (VCEO) | 45V | |
| Max Collector Current | 100mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1mA 5V | |
| Current - Collector Cutoff (Max) | 500nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 100mA | |
| Transition Frequency | 270MHz | |
| Collector Base Voltage (VCBO) | 50V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 4.58mm | |
| Length | 4.58mm | |
| Width | 3.86mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
SS9014 Feature
-
Pre-Amplifier, Low Level, Low Noise NPN Transistor
-
Current Gain (hFE), 60 to 1000 (good linearity)
-
Continuous Collector current (IC) is 100mA
-
Collector-Emitter voltage (VCEO) is 45 V
-
Collector-Base voltage (VCB0) is 50V
-
Emitter Base Voltage (VBE0) is 5V
-
Transition Frequency 150MHz
-
Available in To-92 Package
SS9014 Application
-
AF Pre-amplifiers
-
Used as Class B amplifiers
-
Low noise stage audio equipment
-
Push-Pull Circuits
Where to use SS9014
This NPN transistor also features a counter PNP transistor (SS9015) that can be used to create a push-pull class B amplifier. It also has a good collector dissipation (power dissipation) of 0.4W, which is suitable for driving speakers with a good rating.
Because the transistor's collector current is so low (100mA), it's not recommended for switching or driving circuits. These transistors have been discovered in wireless security cameras and mini-game consoles that require audio pre-amplification.
How to use SS9014

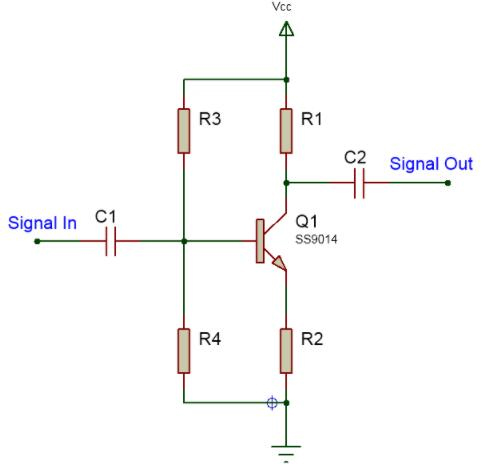

The SS9014 is widely used in pre-amplifier circuits, but you can create your own circuit to meet your needs. To make a preamplifier with a transistor, choose one with low signal and noise, as well as a decent hfe value and collector dissipation. All of those characteristics appear to be met by the SS9014. The circuit for a typical pre-amplifier using SS9014 is shown below.
How to use SS9014
The values of resistors R1, R2, R3 and R4 can be calculated by using the value of Vcc, Hfe and Ic. Some useful formulae for calculation is given below:
Ib = Ic / hfe R1 = 1/2Vcc / .005 R2 = 1 / (Ic + Ib)

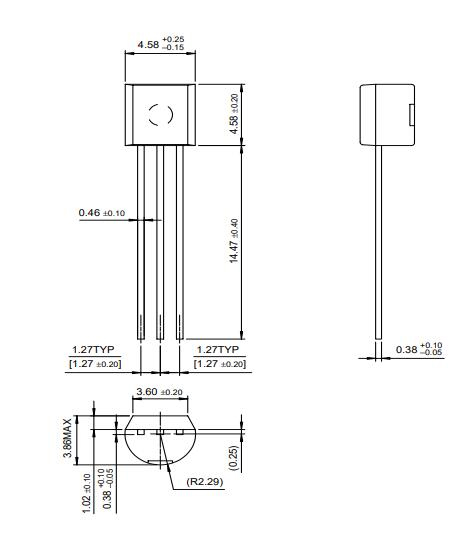

SS9014 Package
SS9014 Package
SS9014 Manufacturer
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Datasheet PDF
SS9014CBU Documents
SS9014CBU Documents
Download datasheets and manufacturer documentation for SS9014CBU
PCN Obsolescence/ EOL
Mult Dev EOL 16/Jul/2019
Environmental Information
Material Declaration SS9014CBU
PCN Packaging
Mult Devices 24/Oct/2017
Frequently Asked Questions
What difference is between C9014 and SS9014?
This is the same series of transistors, their characteristics and pin arrangement are the same.
9014 Structure: NPN
Collector voltage-emitter voltage 45V
Collector voltage-base electrode voltage 50V
Emitter-base electrode voltage 5V
Collector current 0.1A
Dissipated power 0.4W
Junction temperature 150℃
Characteristic frequency 150MHZ minimum
Magnification: A60-150 B100-300 C200-600 D400-1000
What package is SS9014 available?
It is available in a To-92 Package.
What is the equivalent for SS9014?
The equivalent for SS9014: KSP06, KSP42, MPSA42, MPSW06
FAQ
What difference is between C9014 and SS9014?
This is the same series of transistors, their characteristics and pin arrangement are the same.
9014 Structure: NPN
Collector voltage-emitter voltage 45V
Collector voltage-base electrode voltage 50V
Emitter-base electrode voltage 5V
Collector current 0.1A
Dissipated power 0.4W
Junction temperature 150℃
Characteristic frequency 150MHZ minimum
Magnification: A60-150 B100-300 C200-600 D400-1000
What package is SS9014 available?
It is available in a To-92 Package.
What is the equivalent for SS9014?
The equivalent for SS9014: KSP06, KSP42, MPSA42, MPSW06
